12.4

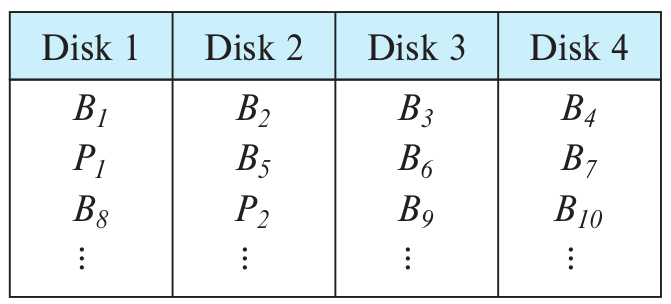

Consider the following data and parity-block arrangement on four disks:

The $B_i$ s represent data blocks; the $P_i$ s represent parity blocks. Parity block $P_i$ is the parity block for data blocks $B_{4i-3}$ to $B_{4i}$. What, if any, problem might this arrangement present?

---

This arrangement has the problem that $P_i$ and $B_{4i-3}$ are on the same disk. So if that disk fails, reconstruction of $B_{4i-3}$ is not possible, since data and parity are both lost.
