assignment 5

Assignment 5: Decomposing Complex SQL Schema to 2NF

Scenario:

CREATE TABLE Employee (
    EmpID INT PRIMARY KEY,
    EmpName VARCHAR(50),
    EmpRole VARCHAR(50)
);

CREATE TABLE Department (
    DeptID INT PRIMARY KEY,
    DeptName VARCHAR(50)
);

CREATE TABLE Assignment (
    EmpID INT,
    DeptID INT,
    AssignmentDate DATE,
    PRIMARY KEY (EmpID, DeptID),
    FOREIGN KEY (EmpID) REFERENCES Employee(EmpID),
    FOREIGN KEY (DeptID) REFERENCES Department(DeptID)
);

1. Identify Partial Dependencies:

• There are no partial dependencies in this schema.
• In the Assignment table, AssignmentDate is dependent on the entire primary key (EmpID, DeptID). It represents the date when a specific employee was assigned to a specific department.

2. Decomposition (Not Required):

• Since there are no partial dependencies, no decomposition is required. The schema is already in 2NF.

3. SQL Code to Create New Tables (Not Required):

• No new tables are required.

4. SQL INSERT Statements:

INSERT INTO Employee (EmpID, EmpName, EmpRole) VALUES
(1, 'Alice', 'Manager'),
(2, 'Bob', 'Developer');

INSERT INTO Department (DeptID, DeptName) VALUES
(101, 'Sales'),
(102, 'Engineering');

INSERT INTO Assignment (EmpID, DeptID, AssignmentDate) VALUES
(1, 101, '2023-10-26'),
(2, 102, '2023-10-27');

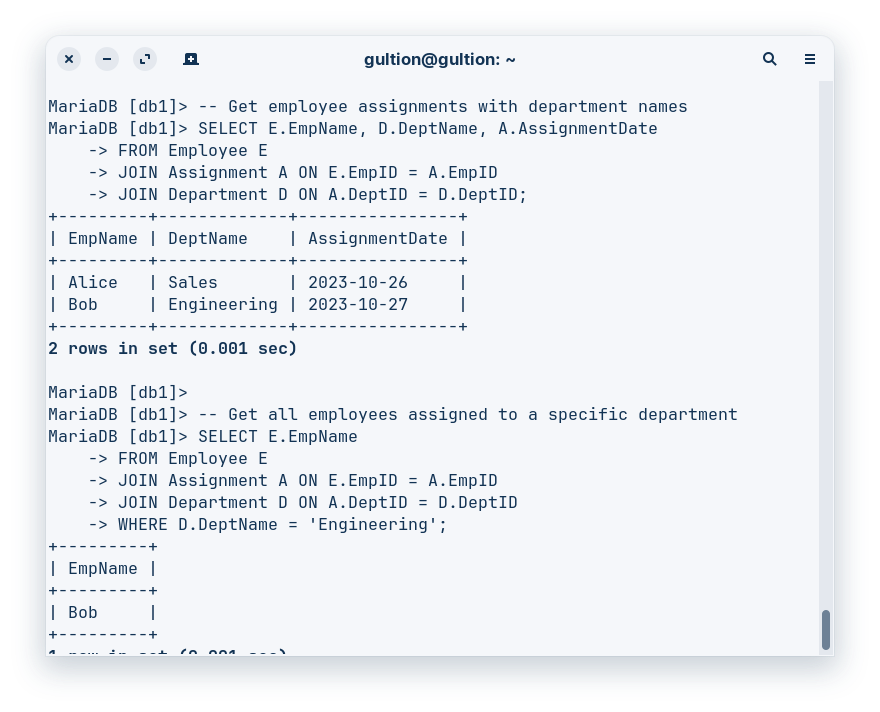

5. SQL SELECT Queries:

-- Get employee assignments with department names
SELECT E.EmpName, D.DeptName, A.AssignmentDate
FROM Employee E
JOIN Assignment A ON E.EmpID = A.EmpID
JOIN Department D ON A.DeptID = D.DeptID;

-- Get all employees assigned to a specific department
SELECT E.EmpName
FROM Employee E
JOIN Assignment A ON E.EmpID = A.EmpID
JOIN Department D ON A.DeptID = D.DeptID
WHERE D.DeptName = 'Engineering';
